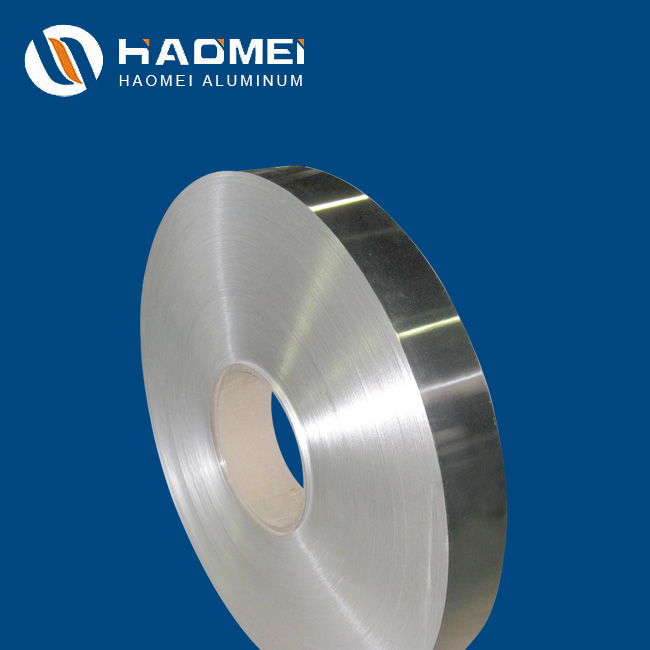

1060 aluminum strip

CATEGORY AND TAGS:
Aluminum Strip , ,
  • Alloy :1060
  • Thickness :0.02~4.00
  • Width:20-1650mm
  • Application:Industry, celling, gutters
  • Type: strip/roll/coil
  • Temper:O - H112
enquiry
  • Specifications

1060 aluminum strip is the most popular strip product in the aluminum industry. Its key application is for transformer. 1060 aluminum strip for transformer winding has light weight, excellently smooth surface, good heat conductivity and satisfying water-proof property. Owing to the fact that 1060 aluminum strip for transformer winding is usually of o state, it’s also known as o aluminium strip 1060.

In addition to O, 1060 aluminum strip has tempers of H12, H14, H16,H18. H22, H24, H26 and H28. All the tempers are of cold treatment, because 1060 aluminium is not suitable for heat treatment. O aluminium strip 1060 contains 99.6% aluminum and 0.4% other metals. With a lower hardness than strips of other series, it has perfect tensile strength and plasticity, withstanding bending force without breaking while being used for transformer winding.

1060 aluminum strip for transformer winding specification

Product name aluminium strips
Alloy 1060
Temper O, H12, H14, H16,H18. H22, H24, H26,H28
Thickness 0.1mm-4.0mm
Width 20mm to 1650mm
Packages 1) eye to sky  2)eye to side
Inner Diameter 76mm or 505mm, paper core or aluminium core
Applications condenser fin, gutters, ceilings, curtain walls, moscaics, lights reflector, solar energy, advertisement word of edge,name plate,household appliance
MOQ 3-5 ton
Lead Time Within 30days after receiving the advance payment
Payment TT, LC, negotiable

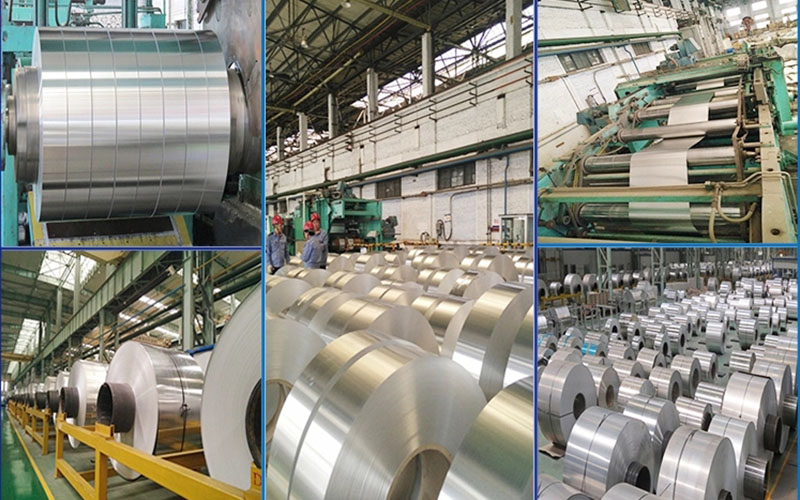

This shows 1060 aluminium strip process workflow.

o aluminium strip 1060 chemical composition

CHEMICAL COMPOSITION
ALLOY Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1060 0.25 0.35 0.05 0.03 0.03 / / 0.05 / 99.6

Application

1060 aluminum strip is widely used in products that do not require high strength, such as signboards, billboards, building exterior decoration, bus bodies, high-rise and factory wall decoration, kitchen sinks, lamp holders, fan blades, electronic parts, chemical instruments, sheet metal parts, deep drawing or spinning concave shaped vessels, welded parts, heat exchanging agents, clock surfaces and discs, nameplates, kitchen utensils, decorations, reflective appliances and so on.

Packaging and shipping

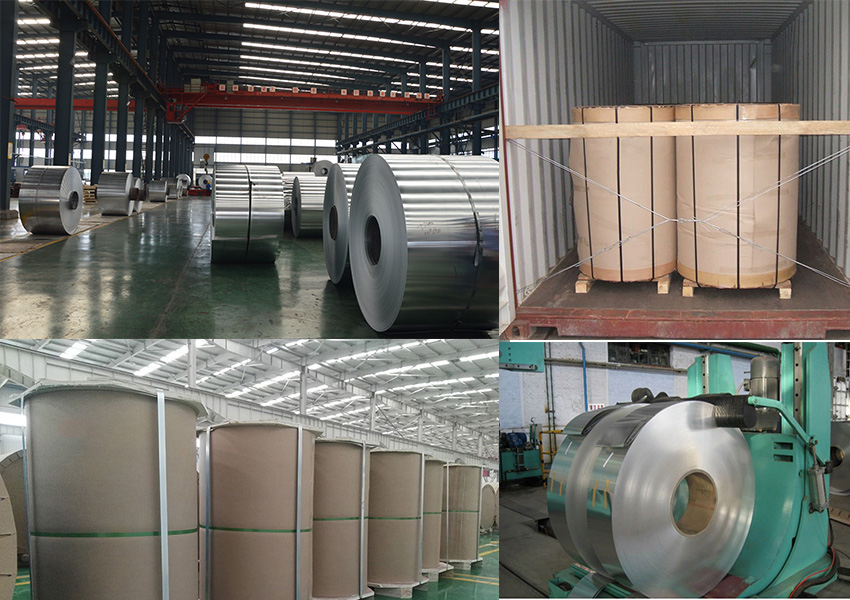

This shows 1060 aluminum strip packaging and shipping.
