Aluminum Strip

» Aluminum Strip

    • Aluminum Strip For Transformer

    CATEGORY AND TAGS:
    Aluminum Strip , ,

    Grades:1050, 1350,1060,1070

    Temper:O

    Thickness: 0.2mm-3.5mm

    Width: 10mm-1600mm

    Edge: Slit/Round

    Quantity Tolerance: ±10%

    Downloadenquiry
    • Specifications
    • Packaging
    • Gallery

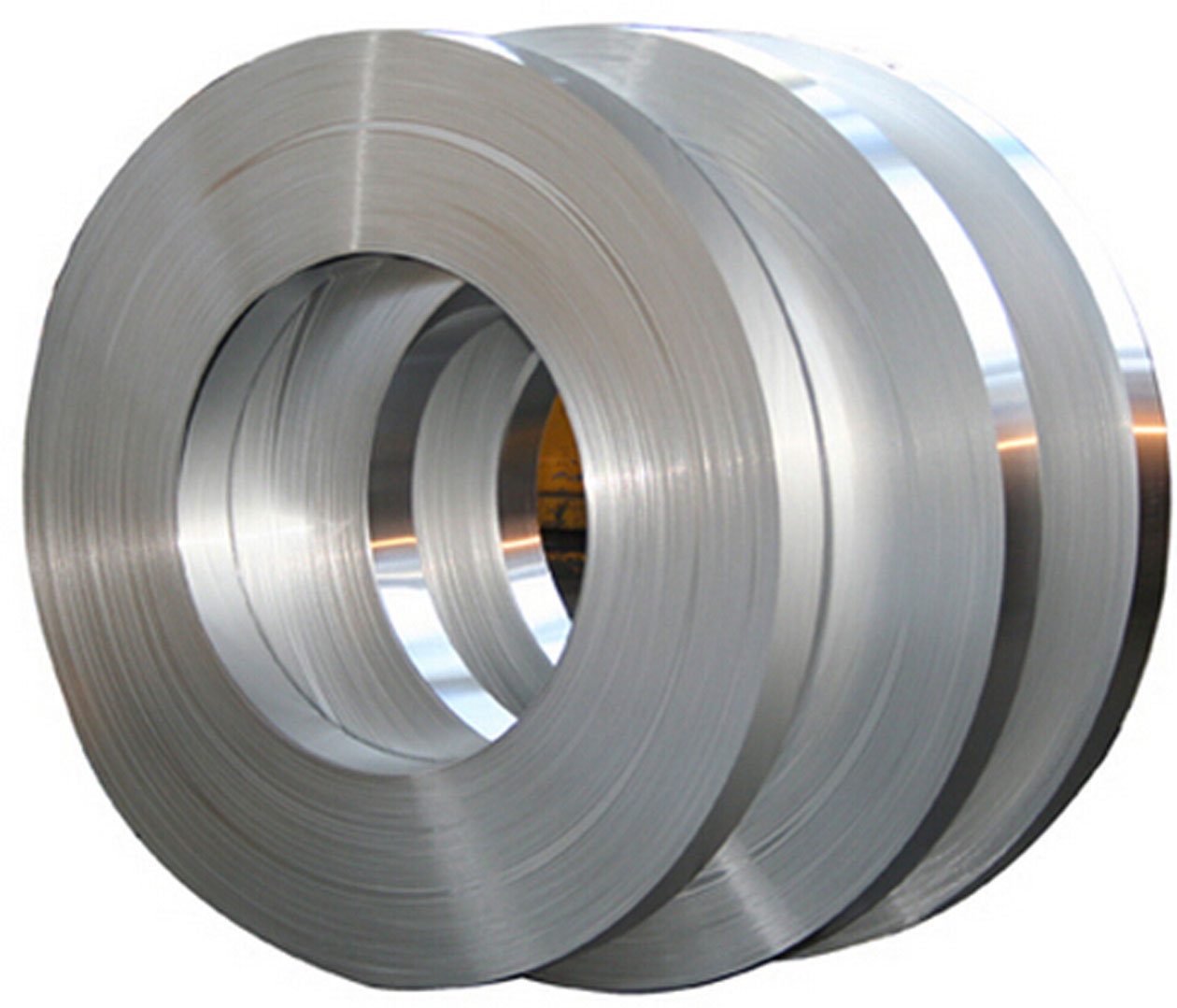

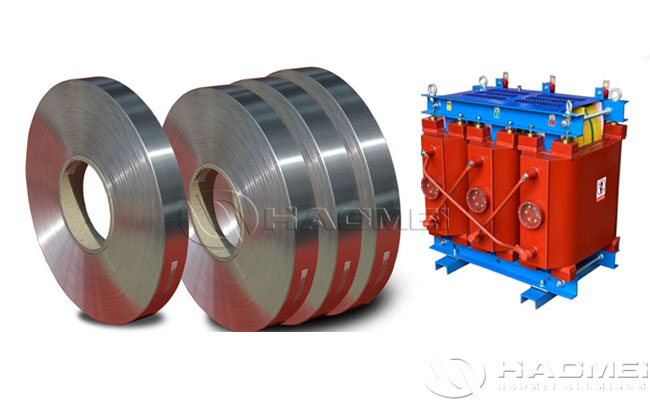

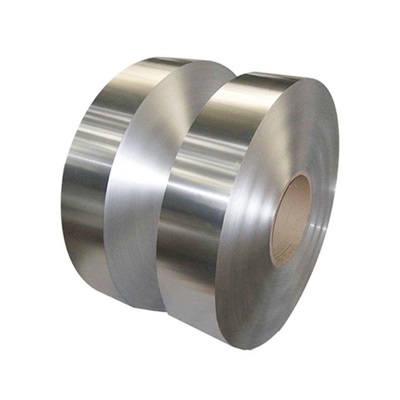

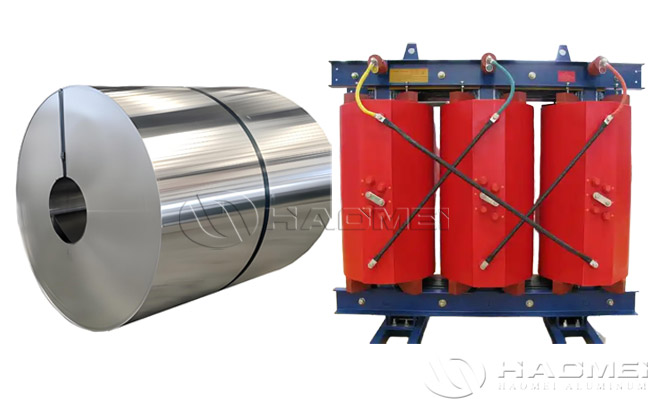

    Aluminum strip is the main raw material in transformer winding, according to the actual needs of the design of different combinations of  coil width, aluminum coil can be divided into three, four and five strips.

    Aluminum strip for transformer winding has good ductility and thermal conductivity, which can significantly improve the heat dissipation performance of transformers. 1xxx series aluminum foils strips for transformers grade mainly include 1050, 1060, 1070, 1350, 1100 aluminium strips for transformers grade etc. They represent the series of pure aluminium product series. The 1000 series aluminium foils strips for transformers grade are characterized by high plasticity, corrosion resistance.

    Specification of Aluminum Strip For Transformer:

    Product Name Aluminum foils strips for transformers
    Grades 1050, 1350, 1060, 1070, 1100
    Temper O
    Thickness 0.2mm-3.5mm
    Width Width:10mm-1600mm
    Edge Slit/Round
    Quantity Tolerance ±10%
    Paper Core Internal
    Diameter    		 Ø 150mm,Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core on
    special request
    Surface Treatment The strip has a smooth surface, free from scratches and impurities

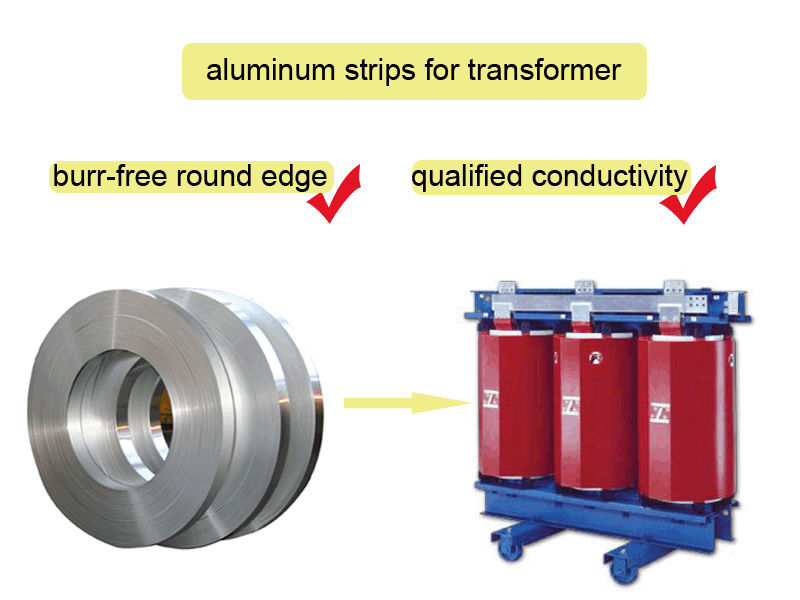

    Electrical Conductivity Transformer windings made of 1050 O in annealed condition is guaranteed to be better than 60 % ACS.
    Transformer windings made of 1060 O in annealed condition is guaranteed to be better than 61.5 % ACS.
    Transformer windings made of 1070 O in annealed condition is guar-anteed to be better than 62.7 % ACS.
    Transformer windings made of 1350 O in annealed condition is guaranteed to be better than 62 % ACS.
    Applications Transformer winding

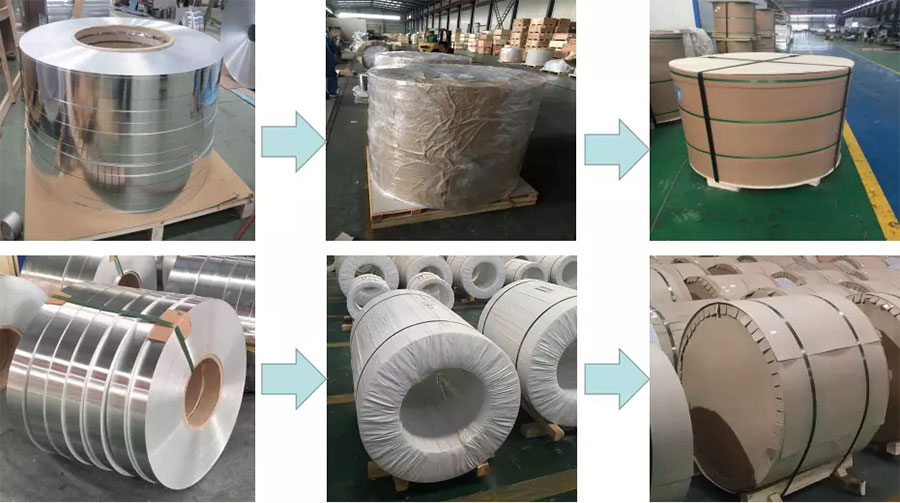

    Packaging Wooden Pallet/Wooden Case
    Payment Terms 30% TT deposit and 70% balance before shipment, 100% LC at sight
    Delivery Time 7-10 working days
    MOQ 1-2 Tons
    Sample The sample of Aluminium strip is available
    Remark Aluminium strip can be customized



    Chemical Composition of Aluminum Strip For Transformer Winding:

    1050 O Aluminum Foils Strips Chemical Composition(%)
    Element Al Si Fe Mg Zn Mn Ti Cu V
    Standard Value ≥99.5 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039



    1060 O Aluminum Foils Strips Chemical Composition(%)
    Element Al Si Fe Mg Zn Mn Ti Cu V
    Standard Value ≥99.6 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039



    1070 O Aluminum Foils Strips Chemical Composition(%)
    Element Al Si Fe Mg Zn Mn Ti Cu V
