Flexible aluminium trim strip

May 14, 2020

Aluminium trim strip is a kind of flexible strip of 0.2mm to 4mm thick, 50mm to 600mm wide and any color you need. A trim strip is a coated tape used for plastic composite pipes, cables, venetian blinds, interior and exterior decoration materials etc. The flexibility of the strip is up to its hardness which further relates to alloy and temper. Regular alloys for trim aluminium strips include 1060, 1070, 1100, 3003, 3004, 3104, 5005, 5052 and 6061, the hardness, corrosion resistance and price of which rises successively. Common tempers for them cover H12, H14, H16, H18, H22, H24, H26, O, F, H112 etc.

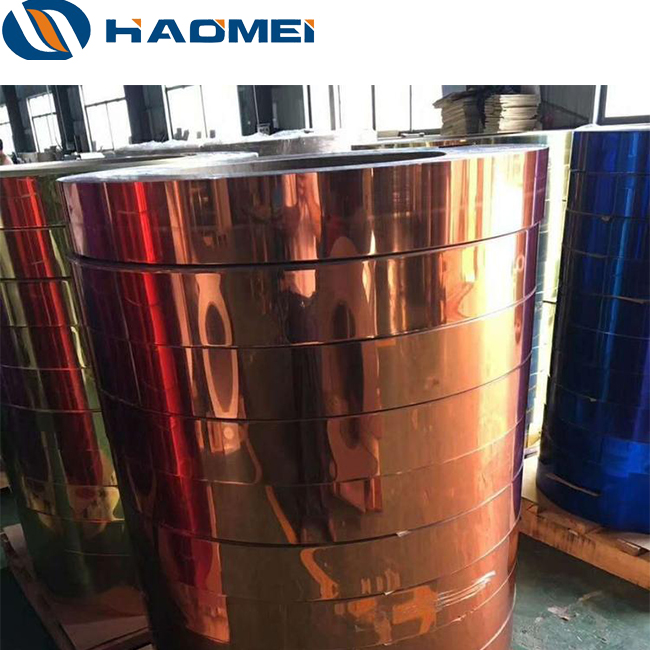

Flexible aluminium trim strip

All of these can be made into trim flexible aluminum strips, and detailed specification is usually based on specific applications. Channel letter aluminium strips, for example, are made of 1000 and 3000 aluminium grades. These strips are usually coated to obtain a stronger corrosion resistance and longer service life outdoors. Hardness, on the other hand, is not a priority for channel letter materials, thus 5000 and 6000 grades are not taken into account. If the strips are used for transformer winding, however, 1060 O aluminium strip would be the best choice. It’s light, flexible, soft and conductive. Harder and more corrosion resistant 5052 and 6061 strips are applied in special conditions that require high in both performances.

A flexible aluminium strip is usually of softer tempers like O, H12, H14, H22 and H24, for harder states reduce the strip’s flexibility. It can be used for transformers, adhesive tapes, cables etc. Owing to the fact that aluminium is only second to copper in copper but much cheaper, it tends to replace copper to be a regular material in electronic industries. Haomei is a 20-year manufacturer and 12-year exporter. Welcome to contact us for more information!
