Aluminum Coil

» Aluminum Coil

  • Channel letter aluminum coil strip

    Aluminum Coil, Aluminum Strip, Color Coated Aluminium , , ,

    Material: 1000 3000 5000 series(1060, 1050, 3003, 3105, 5005)

    Temper: H24, H26, H34

    Thickness: 0.2mm-1.0 mm 1.2mm-4mm, regular 0.5mm, 0.6mm, 0.8mm, 1.0mm

    Width: 30mm-500mm

    • Specifications
    • Features
    • Application of channelum aluminum coil

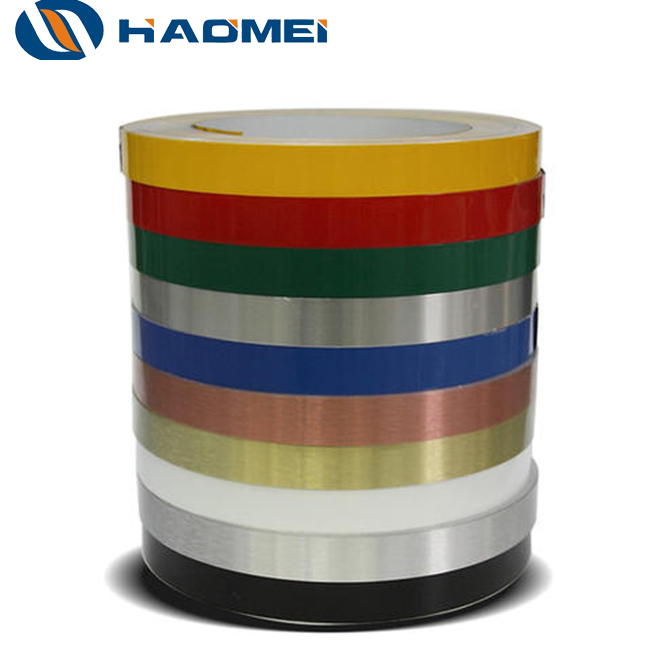

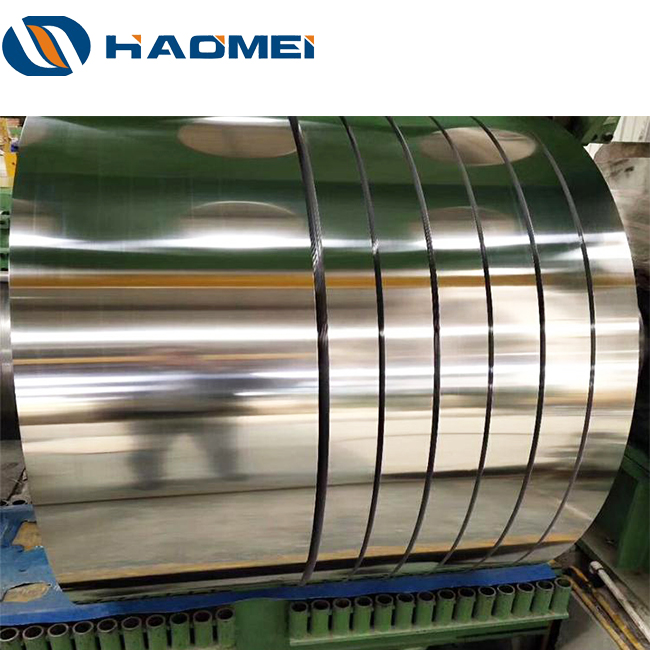

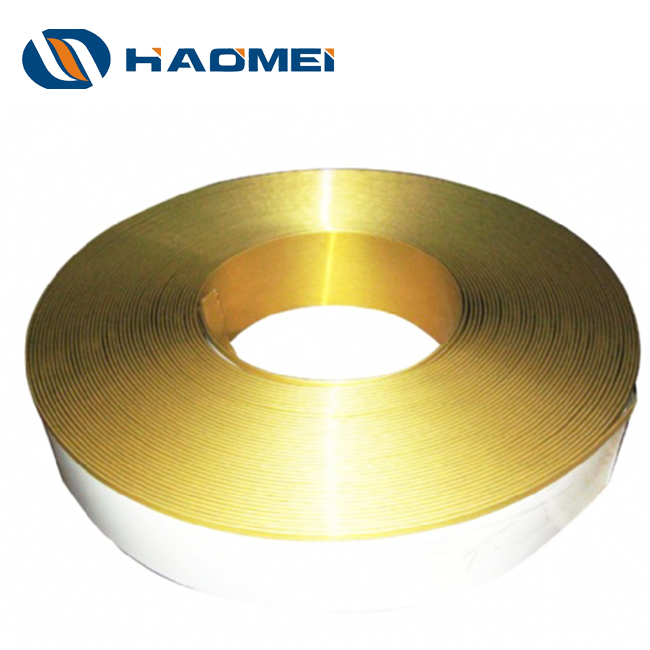

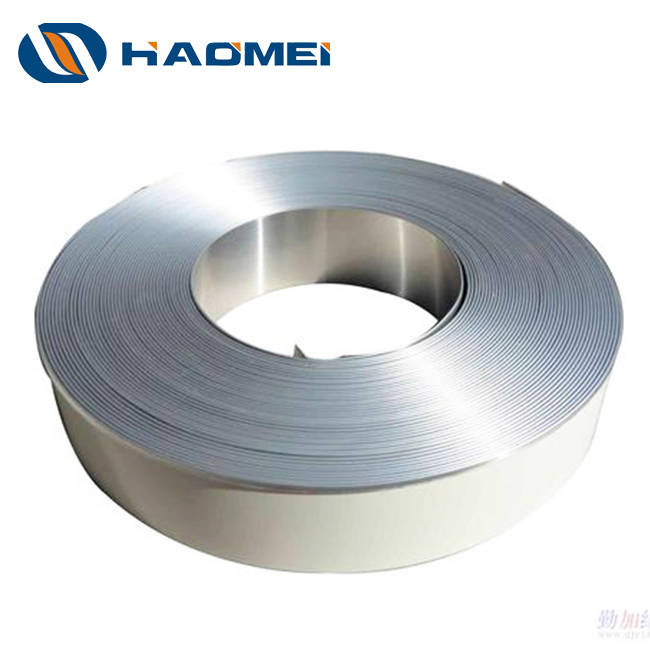

    Aluminum coil for channel letter are usually a kind of coated aluminum strips, widely used for door head light-emitting characters and letter. Adopting polyester roller coating and baking paint technology, we supply aluminum strip for channel letter of various colors in stock: rose gold aluminum edging, black aluminum edging, red aluminum edging, white aluminum edging, yellow aluminum edging etc. Regular thickness scopes cover 1.2mm, 1.5mm, 2.0mm, 3mm and 4mm. Of 1000, 3000 or 5000 series of aluminum alloys, the strips are light in weight and strong in corrosion resistance.

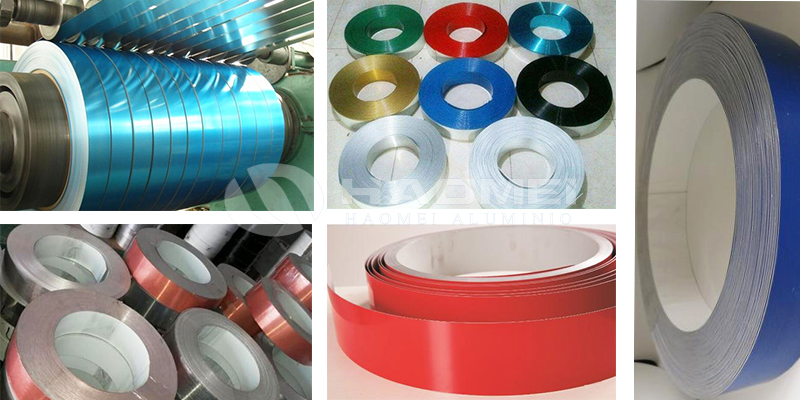

    channelum aluminum coil gallery

    Material: 1000 3000 5000 series(1060, 1050, 3003, 3105, 5005)

    Temper: H24, H26, H34

    Thickness: 0.2mm-1.0 mm 1.2mm-4mm, regular 0.5mm, 0.6mm, 0.8mm, 1.0mm

    Width: 30mm-500mm


    Surface: Coated, Brushed, Anodized, Mirrored etc.

    Coil Weight: 2.5 or 3 tons

    Inner Diameter: 150mm, 400mm, 500mm

    Advantages of Haomei aluminum coil for channel letter

    1. Colors: Various Colors, basis on RAL and PARTON, can be customized;
    2. Coating: Polyester ( PE) and Polyvinylidene Fluoride (PVDF) coating of one layer is about 18μm; coating of two layers is about 25μm
    3. Good quality for bending: our channel letter aluminum coil strip has a T bent test of 1T without any crack
    4. Boiling Point: no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
    5. Corrosive test: surface deep in the 5% muriatic acid and 5% NaCL, indoor deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change


    Features of aluminum strip for channel letter:

    1. Light weight: The density of aluminum is very small, which makes channel letter aluminum strips much ligther than other materials.

    2. High strength: Although aluminium is not the strongest of common industrial metals, its strength can be achieved through component configuration, processing and heat treatment methods. The pencial hardness of our channel letter aluminum coil strip is over 2HB.

    3. Strong corrosion resistance: The naturally strong corrosion resistance of aluminum strip for channel letter gets enhanced by surface treatment methods of color coating, anodizing, mirror polishing and brushing.

    4. Beautiful and durable appearance. The color coated aluminium trim strip for channel sign letter of Haomei has 5 years, 10 years, 15 years, 20 years and 30 years guarantee based on different paints: PE, HDPE, PVDF, PEVE etc.

    5. Good plasticity and easy processing. Haomei aluminum strip for channel letter has a good elongation and T bending performance (over 1T).

    6. Good electrical conductivity: Non-magnetized and low spark sensitivity, which can prevent electromagnetic interference and reduce flammability in special environments.

    7. Easy installation: Haomei aluminum coil for channel letter can be connected by riveting, welding, gluing and other methods.

    8. Environmental protection: channel letter aluminum strips are 100% recyclable.

    Haomei aluminum channel letter coil is suitable for making all kinds of flat characters, resin characters, blister characters, flat acrylic characters punching characters, etc. We have customized all kinds of aluminum materials for banks, shops and companies from all over the world. The colors of the aluminium coil for channel letter sign are rich, bright and colorfast, including red, yellow, blue, green, white, black, flash gold, flash silver, etc. The strips are strong in firmness, suitable for all kinds of fonts, and the service life is more than 5 times longer than the traditional compound edging. Our channel letter aluminum strips have been exported to countries like India, Philippines, Thailand, Korea, Germany, France, Italy, America, Canada, Brazil etc.

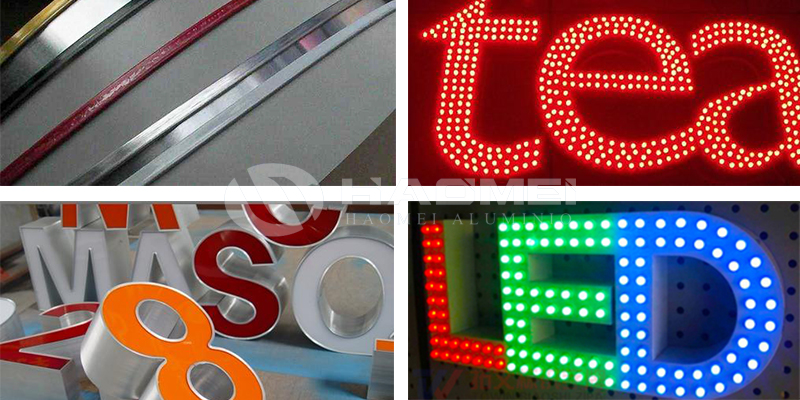

    aluminium trim strip for channel sign letter
