Color Coated Aluminium

» Color Coated Aluminium

  • 5000 Series Color Coated Aluminum Coil

    CATEGORY AND TAGS:
    Color Coated Aluminium , ,

    Model Number: 5005,5052,5083, 5182

    Application: ACP, wall cladding, roofing, ceiling, shutters ect.

    Thickness: 0.02mm-3.0mm

    Width: 40-1600mm

    Paint: AC/PE /PVDF/HDPE /FEVE

    Thickness Of Paint: 8-35 micron

    enquiry
    • Specifications
    5005 5083 5182 5052 color aluminium coil
    Temper H16,H26, H12, H14, H32, H22, H18
    Thickness From 0.02mm to 3.0 mm
    Width From 40- 1600 mm
    Diameter



    Standard dia:1100mm
    Interior dia:150mm, 405mm,505mm
    Weight 2.0-3.0 Tons/coil
    Coating PVDF, PE, PVC, AC
    Surface Embossed, color coated
    Color RAL or Customized
    Gloss 10-90%(EN ISO-2813:1994)
    Coating Thickness



    PE: more than 18 micron
    PVDF: more than 25 micron
    Coating Hardness(pencil resistance) More than 2h
    Coating Adhesion 5J(EN ISO-2409:1994)
    Impact Resistance No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
    Flexibility (T-bend) ≤2T
    MEK Resistance More than 100

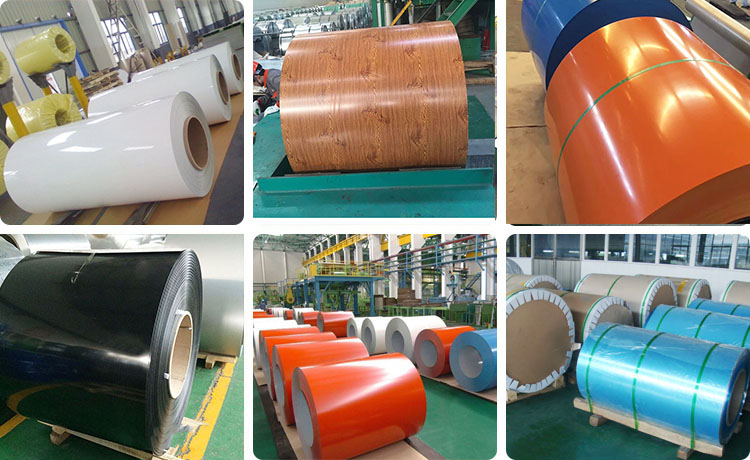

    5xxx color coated aluminium coil

    CHEMICAL COMPOSITION
    Grade Si Fe Cu Mn Mg Cr Zn
    5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 /
    5052 0.25 0.4 0.1 01. 2.2-2.8 0.15-0.35 /
    5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 /

    Color 5052 aluminum coil for blind

    As a representative of 5000 series color coated aluminium coil, 5052 color coated aluminum rolls for blinds have various styles and colors. The width of the blades are 16mm, 25mm, and 50mm, respectively. There are single-color film, mesh film, thickening film, and color film. The high-quality aluminum alloy blades and color accessories make it easy to match with various styles of interior decoration design, so that the blinds can be properly integrated into any indoor spaces in residential, office buildings, public places, etc..

    Coated 5052 and 5182 aluminum coil for beverage cans

    The main alloy grades of aluminum alloy can lid materials and pull ring materials are 5182H19 and 5052H19, with thickness ranging from 0.22-0.45mm and width ranging from 25-1600mm. Various specifications are available. The chemical composition and mechanical properties of 5052 and 5182 colour coated aluminum coil reach specified international requirements in the industry. The cleaning solution used is imported German Henkel, the coating is PPG food-type epoxy resin from the United States, the inner coating grade is 7570-316A, the thickness is 11-13g, the outer coating grade is 2066-802A, and the thickness is 4-6g , The surface of the board is sprayed with electrostatic mist uniformly. The food wax used is Vaseline (white wax) imported from the United States. The product packaging can be selected according to the user’s requirements for roll weight, inner and outer diameter dimensions and directions. package.
