Color Coated Aluminium

» Color Coated Aluminium

  • 3000 Series Color Coated Aluminum Coil

    CATEGORY AND TAGS:
    Color Coated Aluminium , ,

    Model Number: 3003,3004,3105

    Application: ACP, wall cladding, roofing, ceiling,ect.

    Thickness: 0.02mm-3.0mm

    Width: 40-1600mm

    Paint: AC/PE /PVDF/HDPE /FEVE

    Thickness Of Paint: 8-35 micron

    enquiry
    • Specifications

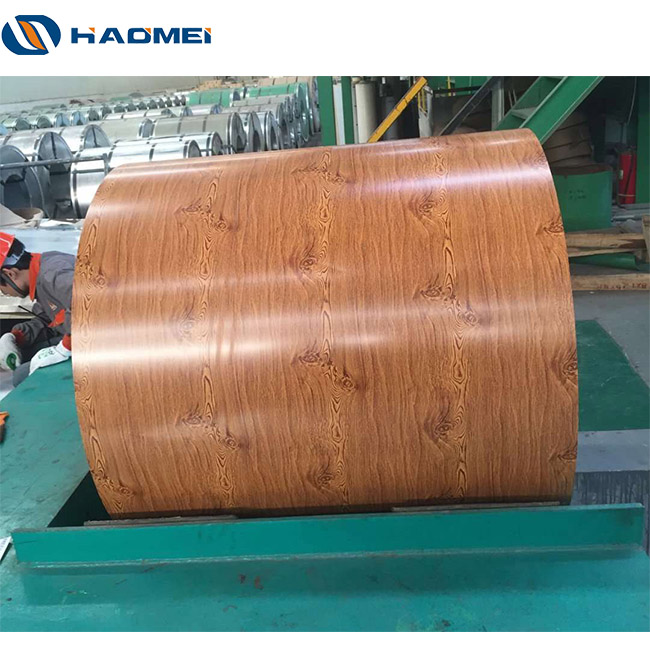

    3000 Series Color Coated Aluminum Coil

    Grade&Temper 3003 3004 3005 3104 3105

    H12, H22, H24, H32, H18,H16,H26

    Thickness From 0.02mm to 3.0 mm
    Width From 40- 1600 mm
    Diameter



    Standard dia:1100mm
    Interior dia:150mm, 405mm,505mm
    Weight 2.0-3.0 Tons/coil
    Coating PVDF, PE or AC
    Surface Embossed, mill finish, coated
    Color RAL or Customized
    Gloss 10-90%(EN ISO-2813:1994)
    Coating Thickness



    PE: more than 18 micron
    PVDF: more than 25 micron
    Coating Hardness(pencil resistance) More than 2h
    Coating Adhesion 5J(EN ISO-2409:1994)
    Impact Resistance No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
    Flexibility (T-bend) ≤2T
    MEK Resistance More than 100



    CHEMICAL COMPOSITION

    Grade Si Fe Cu Mn Mg Cr Zn
    3003 0.6 0.7 0.05-0.2 1.0-1.5 / / 0.1
    3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 / 0.25
    3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 /

    3003 3105 painted gutter aluminum coil

    Alloy: 3003 3105        Temper: H24/H26       Thickness: 0.3-0.6MM     WIDTH: 300-500MM

    3003 3105 painted gutter aluminum coil

    Aluminum alloy aluminum alloy drain and aluminum alloy downpipe are used for 3105H24 and 3003H24 aluminum alloy. The aluminum roll is painted with polyester (PET) on both sides. The mask is 25-28 um thick and the back film is 15-18 um thick. Good mechanical properties ensure that Haomei color coated aluminum coil is easy to be bent, welded and rail pressed in the process of processing. It has become the ideal raw material for aluminum alloy gutter (gutter) and downpipe manufacturers at home and abroad.

    Size: Can be sliced according to customer needs;

    Color: there are nearly 1000 kinds of colors for customers to match, and color matching can be done according to customer samples within 5 working days.

    3004 3003 color coat aluminum coil for roof sheet

    Haomei aluminum magnesium manganese alloy roof color coated aluminum roofing coil, coated with PPG company’s paint by fluorocarbon roller coating processing, is widely used in aircraft terminals, railway stations and many other landmark buildings. Because of its excellent quality, it is widely praised in the industry.

    color coat aluminum coil for roof sheet

    Typical alloy states: a3004h24, a3004h26, a3003h24;

    Typical thickness range: 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm;

    Width: can be cut to any width from 55mm to 1600mm according to customer requirements;

    Color: common silver gray, bright silver, champagne silver, steel will be thousands of colors.
