Color Coated Aluminium

» Color Coated Aluminium

  • Stone coated coated aluminum coils

    CATEGORY AND TAGS:
    Color Coated Aluminium , ,

    Paint type: PVDF POLYESTER ACRYLIC

    Thickness: 0.024mm-1.20mm

    Width: 50mm-1700mm (Standard width:914mm, 1000mm, 1219mm)

    Coils core diameter: 150mm, 305mm, 405mm, 505mm, 508mm, 510mm

    enquiry
    • Specifications
    • Application
    • Packaging and Shipping

    Among leading aluminum manufacturers and suppliers in Henan, China, Haomei supplies 110, 1050, 3003, 5005, 5052 stone coated coated aluminum coils of PE and PVDF. Thickness is 0.024mm to 1.2mm, and width 50mm to 1700mm. Alloys are 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105, 5005, 5052, 8011.

    Paint type PVDF   POLYESTER     ACRYLIC
    Thickness 0.024mm-1.20mm
    Width 50mm-1700mm (Standard width:914mm, 1000mm, 1219mm)
    Coils core diameter 150mm, 305mm, 405mm, 505mm, 508mm, 510mm  POLYESTER>=17micron
    Coating thickness PVDF >=25micron
    Gloss 10-90%
    Coating hardness(pencil hardness) More than 2H
    Coating adhesion No lower than first grade
    Impact resistance No cracking and peeling(50kg/cm, ASTMD-2794:1993)
    SheetMEK resistance: More than 100 times
    Advantage Flexibility
    Usage Aluminum composite panel, ceiling, door and windows, electric appliance,etc.
    Temper O,H12,H14,H16H18,H19,H22,H24,H26,
    H28,H32,H34H36,H38, H42 H44
    Alloys number 1100, 1050, 1060,
    3003, 3004,3005,3104, 3105,
    5005, 5052, 8011
    Application ACP, aluminum, ceilings, aluminum sheets, honeycomb panels and aluminum roofing, lighting decoration,
    Household electrical appliances, food package (such as pop can cover & ring-pull), furniture ect.

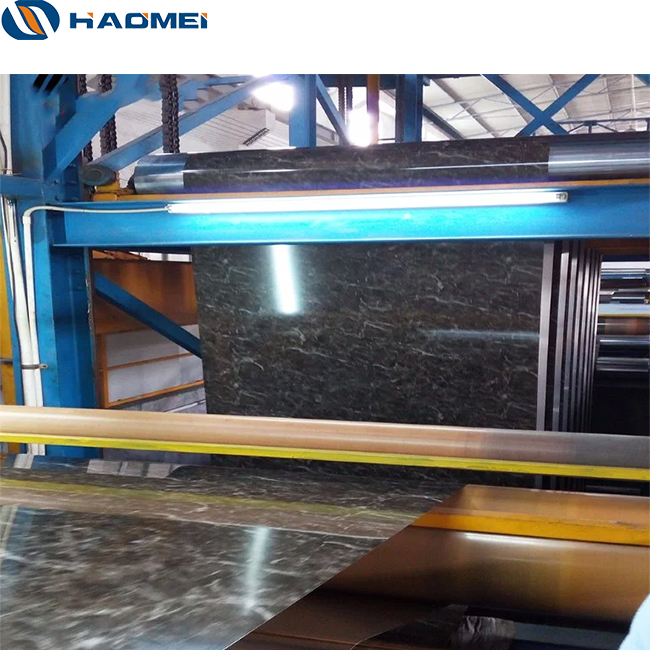

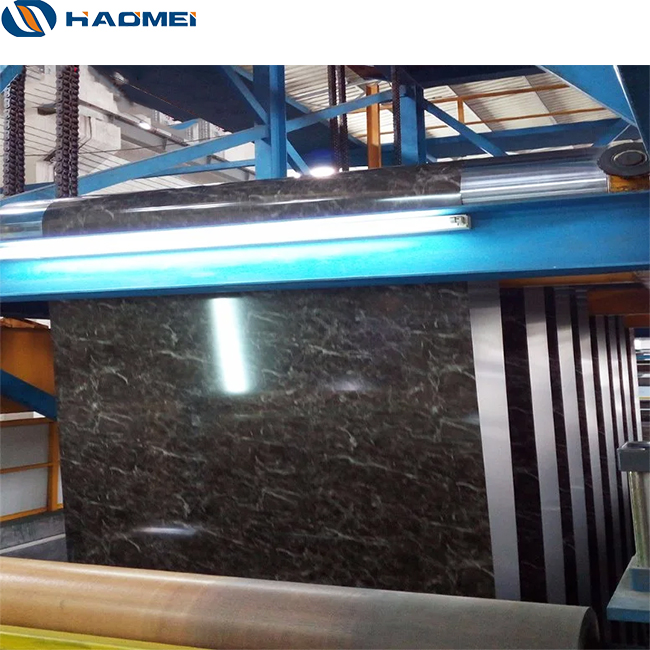

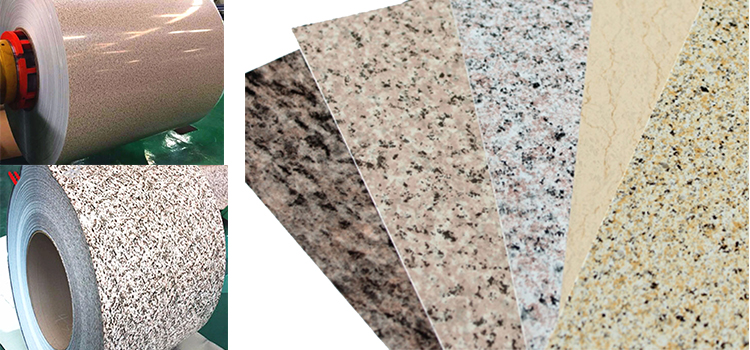

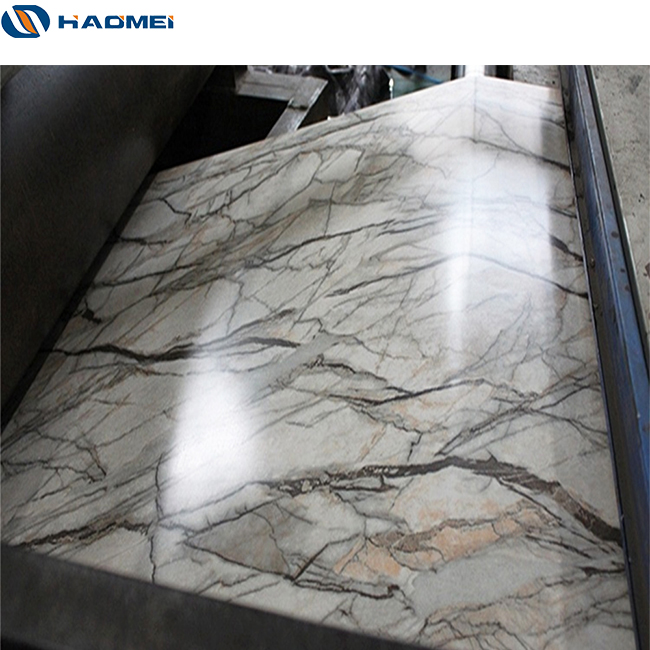

    stone coated coated aluminum coils

    Item Test Item Standard National standard Test Result
    1 Color Difference ECCA T3 ΔE≤2.0 ΔE≤1.5
    2 Gloss Difference ECCA T2 ≤10 ≤5
    3 Coating Thickness ECCA T1 Two layers Min 23μm ≥25μm
    Three layers Min 30μm ≥34μm
    4 Pencil Hardness ASTM D3363 ≥HB HB
    5 T-bend ASTM D4145 ≤2T ≤2T
    6 Adhesion ASTM D3359 Grade 0 Grade 0
    7             Impact ASTM D2794 ≥50kg.cm ≥50kg.cm
    8 Boiling water Resistance GB/T17748 2h No change 4h No change
    9 Solvent Resistance ASTM D2248 200 times paints remaining 500 times no break
    10 Acidity Resistance ASTM D1308 5%HCL 24hrs No change No change
    11 Alkali Resistance ASTM D1308 5%NaOH 24hrs No change color △E≤2.0 No change
    12 Nitric acid Resistance AAMA620 △E≤5.0 △E≤5.0
    13 Oil Resistance ASTM D1308 20#oil 24hrs No change No change
    14 Salt Spray Resistance ASTM B117 4000hrs ≤Grade 1 No change
    15 Abrasion resistance ASTM D968 ≥5L/μm ≥5L/μm
    16 Dirt Resistance GB/T9780 ≤5% <5%
    17 Color retaining GB/T16259 4000 hrs△E≤4.0 4000 hrs △E≤3.0
    18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
    19 Chalking 4000 hrs No change 4000 hrs  No change

    stone coated coated aluminum coils RAL

    Chemical Composition %
    Alloy No. Si Fe Cu Mn Mg Cr Ni Zn V Ti Zr Al

    1050 0.25 0.4 0.05 0.05 0.05 0.05 0.05 0.03 Remainder
    1060 0.25 0.35 0.05 0.03 0.03 0.05 0.05 0.03 Remainder
    1070 0.2 0.25 0.04 0.03 0.03 0.04 0.05 0.03 Remainder
    1100 Si+Fe:0.95 0.05-0.20 0.05 0.01 0.05 Remainder
    3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 Remainder
    3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 Remainder
    3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 0.4 0.1 Remainder
    5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 0.25 Remainder
    5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 Remainder
    5083 0.4 0.4 0.1 0.40-1.0 4.0-4.9 0.05-0.25 0.25 0.15 Remainder
    5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 Remainder
    5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 Remainder
    6061 0.4-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 Remainder
    6063 0.2-0.6 0.35 0.1 0.1 0.45-0.90 0.1 0.1 0.1 Remainder
    6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 0.2 0.1 Remainder
    7005 0.35 0.4 0.1 0.2-0.7 1.0-1.8 0.06-0.20 4.0-5.0 0.01-0.06 0.08-0.20 Remainder
    7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 Remainder
    8011 0.50-0.90 0.6-1.0 0.1 0.2 0.05 0.05 0.1 0.08 Remainder

    Stone coated coated aluminum coils can be widely used in

    1) Galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments.
    2) Other kinds of buildings:As ideal decorative materials for the outer-wall and inner-wall of buildings.
    3) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
    4) Ceilings, eaves, balconies, partitions and interior decorations.
    5) Telephone booths, vehicle bodies, and industrial usages.
    6) Re-decoration of the old building.

    1)Plate/coil is placed to the iron or wooden pallet ,wrapped by water-proof craft paper perfectly , then fixed by iron narrow belt well .1)Packaging Detail:Package

    2)Port:Qingdao port or other main port in China

    3)Container:20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) , loading 18~25 tons .

    40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 20~28 tons.
