    • Good price 3105 checker aluminum tread metal plate sheets

    CATEGORY AND TAGS:
    Aluminum Tread Plate , , ,

    3105 checker aluminum plate is an essentially 98% pure aluminium alloy with minor additions for strength. Aluminum metal checker plate sheets are used in general sheet metal works requiring greater strength than is provided by 1000 series alloys. Most commonly this alloy is stocked in Chequered plates. It is not suitable to be hardened by heat treatment. Like other members of 3000 aluminum alloys, its corrosion resistance, formability and welding characteristics are excellent.

    enquiry
    • Specifications
    • Features
    • Application

    3105 checker aluminum plate is an essentially 98% pure aluminium alloy with minor additions for strength. Aluminum metal checker plate sheets are used in general sheet metal works requiring greater strength than is provided by 1000 series alloys. Most commonly this alloy is stocked in Chequered plates. It is not suitable to be hardened by heat treatment. Like other members of 3000 aluminum alloys, its corrosion resistance, formability and welding characteristics are excellent.

    3105 checkered aluminum tread plate is typically used in: Vehicle Bodies,Refrigerated Trucks, Ambulances, Cold Rooms,Anti skid flooring, Ship platforms, Stair Treads and so on.

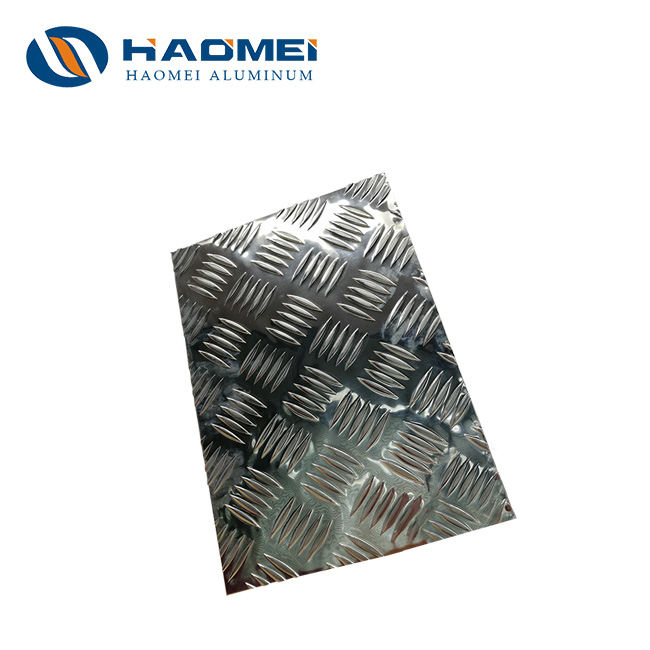

    Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar and 5-bar patterns.

    Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Each Total Alu
    3105 0.6 0.7 0.3 0.3-0.8 0.2–0.8 0.2 – 0.4 0.1 – – 0.05 0.15 Remainder

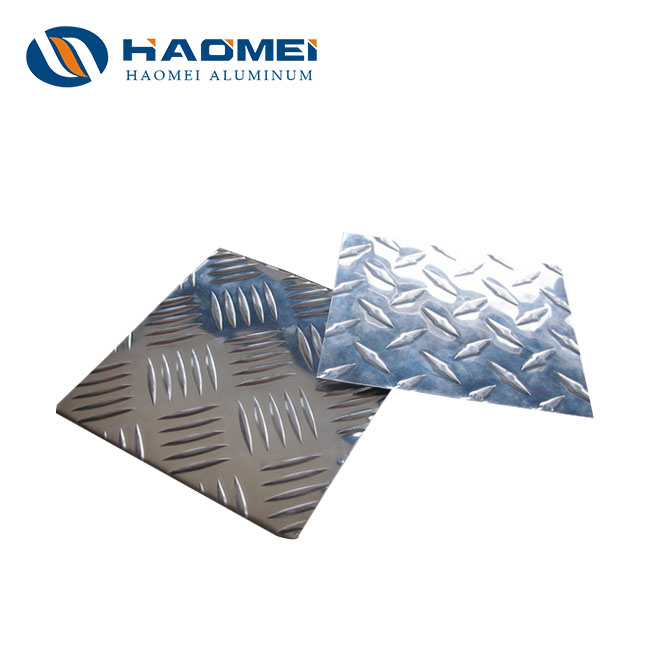

    3105 checker aluminum tread metal plate sheets patterns

    Alloy 1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5083, 5086  6061, 6082
    Temper H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
    Surface Bright finish, Mill finish
    Bar Difference 1 bar (Diamond), 2 bar, 3 bar, 5 bar



    Available Dimension
    Mill finish Surface Bright finish Surface
    Thickness  (mm) 1.00—6.50mm 1.20—6.50mm
    Pattern height Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 0.50mm
    Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm,  bar height: 1.00mm
    Sheet Thickness above 2.0mm,  bar height: 1.50mm Sheet Thickness above 2.0mm,  bar height: 1.50mm
    Width (mm) Maximum 1500mm Maximum 1650mm
    Length (mm) Maximum 6000mm Maximum 6000mm
    Paper interleaves On request for selected On request for selected
    Normal size 1200×2400mm, 1219×2438mm,  1219×3048mm 1200×2400mm, 1219×2438mm,  1219×3048mm

    1. Wide range of selection on aluminium tread plate' size including customized shape

    and size.

    2. Its non-skid properties mean that tread plate is frequently used on the interior of

    ambulances and on the footplates of firetrucks.

    3. Aluminium tread plate may be used for surface protection against damage from foot

    traffic or other harmful chemicals.

    4.Having good forming, drilling and welding ability.

    5. 3105 checker aluminum plate is easy to fabricate and its raised diamond lug pattern

    provides good slip resistance.

    6. Good quality with reasonable price

    3105 Aluminum tread checkered plates sheets are very resilient against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors - aluminium checker plates are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look.

    During production, the pattern of 3105 checker aluminum metal plate is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.

    Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.

    3105 Aluminum tread checkered plate sheet proves to be an ideal material which is suitable for both indoor and outdoor use thanks to its excellent characteristics. Other names for used aluminium checker plate are diamond plate, tread plate or Durbar floor plate, checkered plate.

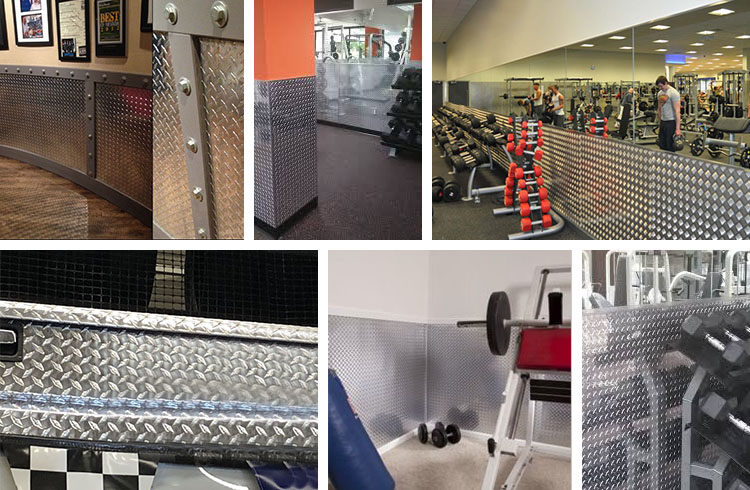

    3105 checker aluminum tread metal plate sheets usages

    A. 3105 Aluminum tread checkered plate sheet has good skid resistance. So it is usually used in the loading ramps, trench covers, dock flooring, stair treads and even for the car, truck, ambulance and fire truck.

    B. It has the decorative function, so it can be used as decoration wall panels, cabinet and ceilings.

    C. Because of the anti- corrosion, it can be used in the chemical industry, or in the decoration of the ship and port facilities.
