Aluminum Foil

» Aluminum Foil

  • aluminium foil for packaging

    CATEGORY AND TAGS:
    Aluminum Foil , , ,

    Alloy: 8011, 3003, 1070, 1145, 1235, 8021, 8079
    Temper: O,H14,H16,H18,H19,H22,H24, H26
    Thickness: 0.009-0.20mm
    Width: 200-1250mm

    enquiry
    • Specifications
    • Food Packaging
    • Pharmaceutical Packaging
    • Bottle Sealing Foil

    Aluminium foil packaging material plays an increasingly important role in food soft packaging, cosmetics packaging and medicine packaging. Foil paper for food packaging has advantages of good sealing effect and high sanitary level, extending the shelf life of products substantially. Aluminium foil for medicine packaging is applied in bottle sealing, capsule board sealing etc.

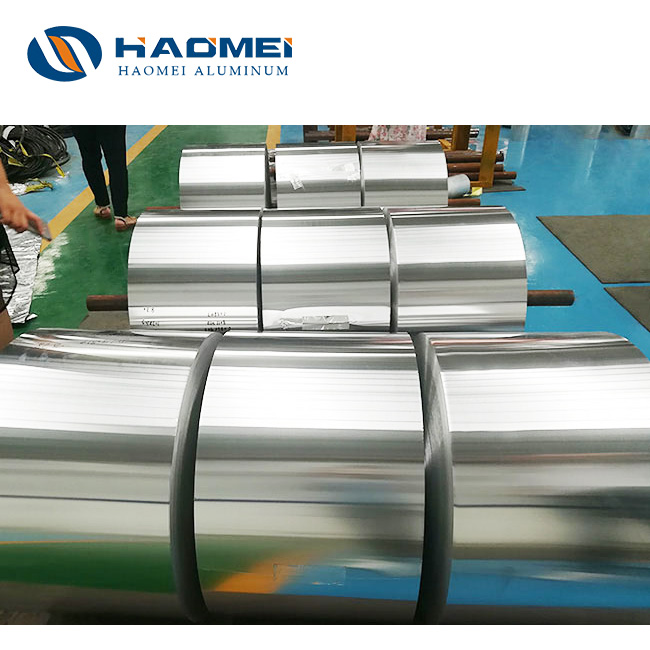

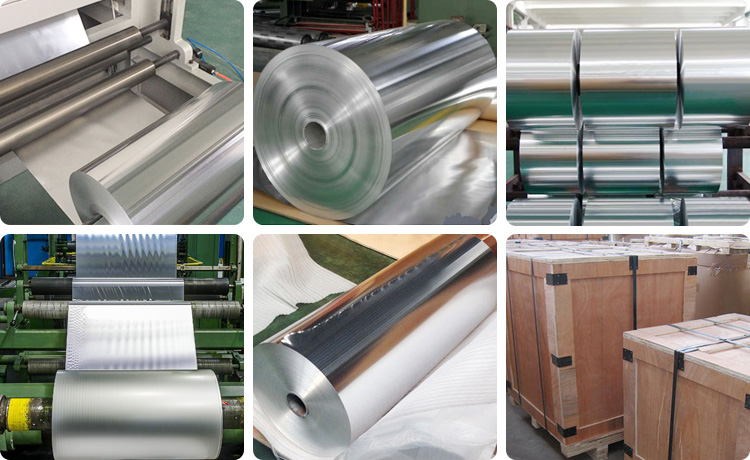

    aluminium foil packaging material

    Alloy: 8011, 3003, 1070, 1145, 1235, 8021, 8079
    Temper: O,H14,H16,H18,H19,H22,H24, H26
    Thickness: 0.009-0.20mm
    Width: 200-1250mm
    Type: roll
    Application: aluminium foil for food container, food packing, pharmaceutics, cigarette, cable etc.

    Aluminium Foil for Food Packaging

    Grade Temper Thickness width Max.Coil ID Tensile strength Elongation
    1235 O 0.006-0.03mm 300mm + 500mm 70-100(N/mm2) ≥3
    1145 O 0.006-0.03mm 300mm + 500mm 70-100(N/mm2) ≥3
    8011 O 0.006-0.03mm 300mm + 500mm 70-100(N/mm2) ≥3

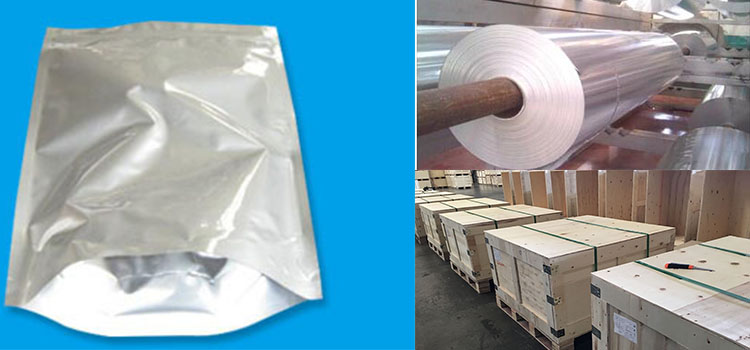

    food packaging aluminium foil

    Aluminum foil for flexible packaging is mainly used for packaging of various foods such as food, beverages, cooked food, etc., greatly improving the mechanized production level of the food and beverage industry.

    Surface quality of food packaging aluminium foil: neat in cross section, without cracks, tower shape, loose roll, lifting bar, bump and other defects.

    A. There are no bright spots, roller marks and black lines on the surface.

    B. The surface is flat.

    C. The surface of the aluminum foil for food packaging is clean, without oil marks, corrosion marks, or scratches

      Aluminium Foil For Pharmaceutical Packaging

    There are three kinds of alloy grades for pharmaceutical foil: 8011, 8021, and 1235. Pharmaceutical foil rolls are generally of soft O state. Some clients require 8011 of H18 state. The aluminium foil for medicine packaging is only tens of microns thick. Above 300mm, the inner diameter of the winding core is 76mm, the maximum outer diameter reaching 500mm, and the thickness tolerance no more than 5%. The result of the water brushing test is grade A.



    Alloy

    Temper Thickness Width Inner Coil ID Max.Coil Diameter Thickness error(%) Water test
    8011 H18 0.018-0.025mm 300mm + 76mm 500mm ≦5 A
    8011 O 0.04-0.045mm 300mm + 76mm 500mm ≦5 A
    8021 O 0.047-0.065mm 300mm + 76mm 500mm ≦5 A
    1235 O 0.006-0.009 300mm + 76mm 500mm ≦5 A

    Aluminium Foil For Pharmaceutical Packaging

    The medicinal aluminum foil is mainly used for packaging medicines to protect medicines and improve the stability and reliability of medicines.

    The surface quality of aluminium foil for pharmaceutical packaging: the aluminum foil is neat in cross section, without defects such as clipped edges, cracked edges, loose rolls, tower shape or lifting bars.

    A. The surface of the aluminIum foil is clean and free of oil marks, wrinkles, scratches, creases, rubber roller marks, twills, corrosion scars, etc.

    B. The aluminum foil surface is flat with no oil spots, blistering or tearing.

    There is no wheel mark, black lines, light and dark lines and bright spots on the surface of the aluminum foil.

      Packaging for aluminium foil for medicine packaging: 1. wooden box; 2. Wooden box hanging packaging; 3. Ordinary paperback

    Gross weight of medicinal aluminum foil: gross weight of single box is 600-700 kg.

    Net weight of medicine aluminum foil: net weight of single box is 500-600 kg.

    Bottle Sealing Foil

    Grade Temper Thickness(mm) Width(mm) Elongation Tensile strength Thickness error
    8011 O 0.01-0.0115 300+ 2-2.5 80-90N/mm2 ≦5

    sealing liner aluminium foil

    The bottle seal tape aluminum foil is mainly used for beer bottle cap seal or beer trademark printing. The surface of the bottle cap sealing tape is smooth and no trace. The plate shape is flat, and the number of pinholes is small.

    Appearance quality of aluminum foil for beer sealing: The aluminum foil is neat in cross-section, without cracks, clipped edges, burrs, loose curls, tower shapes, ruffles, etc.

    A. The bottle sealing foil has no roller marks, black lines, highlights or wheel marks.

    B. The surface of the bottle cap sealing tape is clean, without wrinkles, seams, scratches, bright and dark lines, rubber roller marks, vibration marks, diagonal lines, etc.

    C. The flatness of the bottle seal tape surface is high and the number of pinholes is small.

    D. The surface of the bottle cap seal foil is free of oil stickiness, yellow oil spots and blistering caused by the burning of lubricating oil.

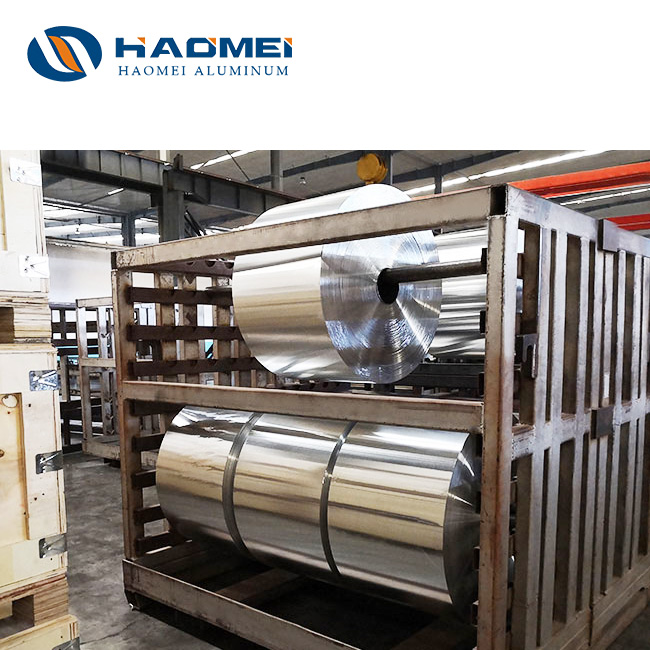

    Packaging:

    Large roll packaging: the size is determined by the width and length of aluminium foil jumbo roll customized by per customer.

    Wooden box packaging: wooden box approximate size: 1.4 meters long, 1.3 meters wide, and 0.8 meters high. The customer's requirements for aluminum foil width and roll diameter are the deciding factors for the size of the wooden box.
