  • 1145 h19 o aluminum coil foil

    CATEGORY AND TAGS:
    Aluminum Coil, Aluminum Foil , ,

    Grade: 1145
    Temper: H18 ,H14,H24, H19, O
    Thickness: 0.006-4.0mm (6um-4000um)
    Width: 10-1850mm
    Coil I.D.: Ф75,Ф150,Ф305,Ф200

    enquiry
    • Specifications

    1145 aluminum alloy coil foil rolls are known for their strong corrosion resistance. The aluminium alloy 1145 is sensitive to high temperatures in the range of 200 to 250°C (392 to 482°F). High temperatures tend to reduce the alloy’s strength. However, the strength of 1145 can be increased at subzero temperatures, making it a good low-temperature alloy. Regular tempers and products for 1145 include 1145-h19 aluminum foil and 1145-o aluminum foil. Although some people also search for aluminium 1145-h19, aluminium alloy 1145 or aluminum 1145 coil, what they want are mostly foil type, namely 1145 alloy rolls of 0.2mm thick and below.

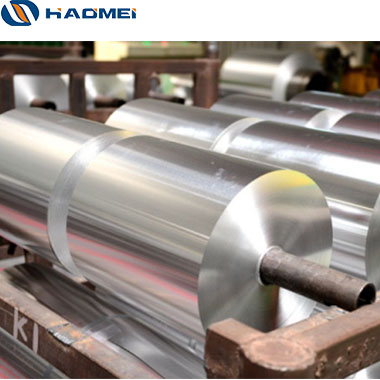

    1145 h19 o aluminum coil foil

    Aluminium Alloy 1145 Coil Specification

    Grade 1145
    Temper H18 ,H14,H24, H19, O
    Thickness 0.006-4.0mm (6um-4000um)
    Width 10-1850mm
    I.D. Ф75,Ф150,Ф305,Ф200

    Chemical Composition of 1145 Aluminium Alloy

    Grade Si Fe Cu Mn Mg Cr Ni Zn Al
    1145 0.55 Si + Fe 0.05 0.05 0.05 0.05 99.45

    1145 alumiminium alloy

    Features of Aluminium Alloy 1145

    Good corrosion resistance

    High thermal and electrical conductivity

    Low mechanical properties

    Good forming ability

    Applications of 1145 Aluminum Coil

    Typical uses include transformers, switch gears, automotive heat shielding, food service, insulation and laminating
