Color Coated Aluminum Strip For Channel Letter Signage Manufacturing

In traditional advertising channel letter production processes, on-site painting/powder coating has always been a bottleneck restricting production capacity and finished product stability: long processes, high energy consumption, difficulty in color difference control, and significant increases in labor costs due to bending and repainting. Haomei Aluminum’s color coated aluminum strip for channel letters moves the surface coating process to the aluminum material production end, using a continuous industrial-grade roller coating process for coloring and curing. Customers can directly bend the strip into shape after receiving the goods, without additional surface treatment, providing global signage manufacturers with an efficient, stable, and low-loss edge material solution.

The color coated channel letter aluminum strip is manufactured using a two-coat, two-bake continuous roller coating production line. After chromating pretreatment, the substrate is coated with primer and topcoat sequentially, and then cured at high temperature to form a dense polymer coating. The standard polyester (PE) coating has a precisely controlled dry film thickness of 18-25μm on the front and 5-10μm on the back. The coating adhesion meets GB/T 9286 standard grade 0, showing no paint peeling or substrate exposure after a 180° T-bend test. Color retention in normal outdoor environments reaches 3-5 years, and no blistering or rusting is observed after 480 hours of neutral salt spray testing. For applications requiring high weather resistance, a PVDF fluorocarbon coating solution is available, with a fluoropolymer content ≥70%. After 3000 hours of QUV accelerated aging, gloss retention is ≥80%, and outdoor weather resistance can reach over 10 years, suitable for long-term use in harsh climates such as coastal and high-altitude regions.

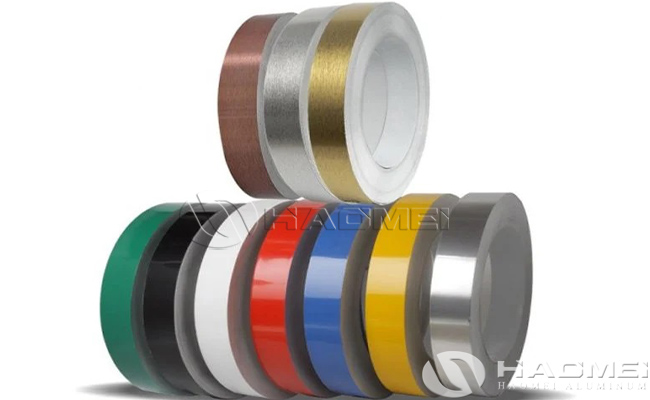

Color batch consistency is the core value of the color coating process. The entire production process is monitored in real-time using an online spectrophotometer system. The color difference value ΔE for products within the same roll is ≤1.0, and for products within the same batch, ΔE is ≤1.5, far superior to the color fluctuation levels of manual spraying. This fully meets the visual standardization requirements of global chain brand stores, avoiding significant color differences between different batches of signs. The channel letter aluminum strips products are available in glossy, matte, and semi-gloss finishes, covering over thirty mainstream colors in the signage industry, including black, white, red, blue, gray, gold, and silver. Custom color schemes based on the Pantone color chart are also available to precisely match the color requirements of different brand VI systems.

The coated aluminum channel letter strips products use 1100-O and 3003-O tempered soft aluminum alloys as the base. After complete recrystallization annealing, the elongation is ≥30%, and the tensile strength is stable at 90-130MPa. The balance of plasticity and rigidity is optimized for bending processes. The aluminum strip undergoes a precision slitting process, with width tolerance controlled within ±0.1mm and side burr height ≤0.03mm, making it compatible with high-speed continuous feeding of various fully automatic CNC bending machines. Thanks to the strong adhesion of the pre-coated layer, the aluminum strip remains intact and undamaged after sharp corner bending, arc forming, and stamping. Finished products require no touch-up painting or sanding, reducing the production cycle per character by over 40% and completely eliminating the environmental and fire risks associated with on-site painting.

Regarding specifications and supply, the standard thickness range is 0.4mm-1.2mm, and the finished product width covers 20mm-150mm. Customized slitting sizes are available based on customers’ common facade heights. Standard roll diameters are 300mm/505mm, and net weight per roll can be customized to meet the feeding needs of different production lines. All finished products are individually wrapped with PE film and packaged with moisture-proof outer packaging, reinforced with pallets for ocean shipping. The factory maintains sufficient master roll inventory, and standard colors and specifications can be shipped within 7 working days. Small-batch trial orders and free samples are supported. A complete set of material testing reports and export documents are available, and various international trade terms such as FOB and CIF are supported.

Currently, Haomei color-coated aluminum strips are widely used in various signage projects, including global commercial chains, municipal wayfinding systems, and brand stores. If you wish to optimize your signage production line and reduce overall production costs, please contact us for samples and a detailed quotation.
