Aluminum Sheet

» Aluminum Sheet

  • 5754 aluminum plate

    CATEGORY AND TAGS:
    Aluminum Sheet ,

    Temper: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H16, H18,H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112,H114

    Thickness (mm): 0.1-500

    Width (mm): 20-2650

    Length (mm): 500-16000

    enquiry
    • Specifications

    5754 aluminum plate is a typical alloy among Al-Mg series of alloys. 5754 aluminium sheet almg3  has good corrosion resistance, excellent processing performance, weldability and easy processing and forming. It is widely used in welded structures, storage tanks, pressure vessels, ship structures and offshore installations, transportation tanks and applications requiring excellent processing performance, excellent corrosion resistance, high fatigue strength, high weldability and medium static strength. The properties of 5754 aluminium plate produced by Haomei far exceeds the industry standard, and the quality is more reliable. The 5754 aluminium material alloy sheets in different heat treatment states are the main materials used in the automobile manufacturing industry (car doors, molds, seals) and canning industries.

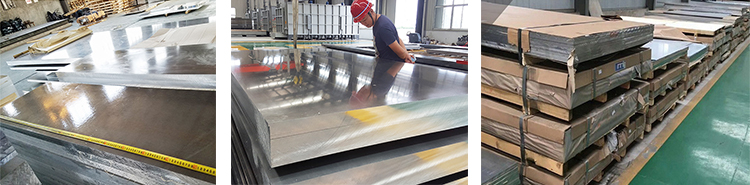

    5754 aluminum sheet plate

    Alloy 5754
    5754 aluminum tempers F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114
    Thickness (mm) 0.1-500
    Width (mm) 20-2650
    Length (mm) 500-16000
    5754 aluminum density 0.0000028
    5754 aluminum properties Medium strength, good machinability, good corrosion resistance, good weldability, easy processing and forming, good anodizing effect
    End products Internal and external wall panels, bottom plates and carriage of railway passenger cars

    Regular sizes in 5754 aluminium data sheet include 2.0*940*820, 2.96*1250*2500, 1.5-2.0*1250*2500, 1.5*1590*1015, 10*1250*2500 etc. Popular thicknesses of 2mm, 3mm and 4.5mm are available. Tempers are O and H112.

     5754 aluminium plate alloy composition

    Al :rest

    Si :0.40; Cu :0.10; Mg:2.6~3.6; Ti:0.15; Zn:0.2; Mn:0.50; Cr :0.30

      5754 aluminum sheet alloy mechanical properties

    Tensile strength σb (MPa): 165~265

    Typical production process: 25%~35% cold working rate reserved for hot-rolled plates, intermediate annealing, cold-rolled product thickness, stabilized annealing temperature 140℃~150℃, holding time 1h.

      5754 aluminum plate applications

    5754 aluminium alloy applications

    5754 aluminum plate sheet has excellent machinability and anodising properties, used in car doors, high-speed rail noise barriers, fuel tanks, aluminum alloy doors and windows, yachts, car doors, brazing plates, car frames, etc. In particular, Haomei boasts outstanding 5754 aluminium anodising process.
