    Among leading aluminium discs suppliers and manufacturers, Haomei supplies the big round disc aluminum for basins and vehicle battery shells.

    enquiry
    • Specifications

    We are engaged in providing our clients with with a wide range of aluminum circles, especially big round disc aluminum products. This range is of supreme quality and is widely appreciated for its accurate dimensions. It is offered by us in various sizes and specifications to meet the varied requirements of our clients.

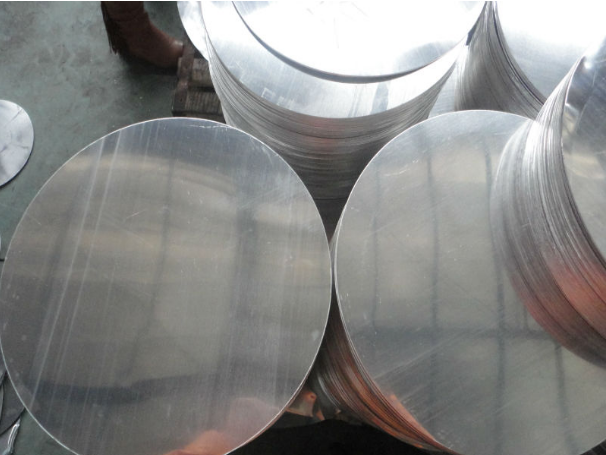

    big round disc aluminum

    Chemical Composition (WT.%) of big round disc aluminum
    Alloy Min.AL Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other
    1050 99.5 0.25 0.4 0.05 0.05 0.05 — — 0.05 — 0.05 0.03 0.03
    1060 99.6 0.25 0.35 0.05 0.03 0.03 — — 0.05 — 0.05 0.03 0.03
    1070 99.7 0.25 0.25 0.04 0.03 0.03 — — 0.04 — 0.05 0.03 0.03
    1100 99 0.95 0.95 0.05-0.2 0.05 — — — 0.1 — — — 0.05
    3003 96.75 0.7 0.7 0.05-0.2 1.0-1.5 — 0.1 — — — 0.15
    Mechanical Properties of big round disc aluminum
    TEMPER THICKNESS(mm) TENSILE STRENGTH ELONGATION% Standard
    HO 0.36-10 60-100 ≥ 20 GB/T91-2002
    H12 0.5-10 70-120 ≥ 4 GB/T91-2002
    H14 0.5-10 85-120 ≥ 2 GB/T91-2002
    Specification
    ALLOY TEMPER THICKNESS(mm) Diameter(mm) Standard
    1050/1060/1070/1100/3003 HO,H12,H14 0.36-10 20–1200mm GB/T91-2002

    Aluminum round discs are widely used in electrical appliances, thermal insulation, machinery manufacturing, automotive, aerospace, military, mold, construction, printing and other industries, such as kitchen supplies such as non-stick pans, pressure cookers and other hardware supplies such as lampshade, water heater shell and so on. Big round disc aluminum products are made into large basins, vehicle batter shells etc.

    Aluminum uncoiling and blanking production line for big round aluminum discs mainly consists of: loading pallet truck, uncoiling machine, leveling machine, feeder machine, swing unit, special closed single-point mechanical press, rapid mold change device, stacking unit, scrap shearing, hydraulic system, electrical control system, etc.
